motor-mechanism - MCH - 200..240 V AC for fixed

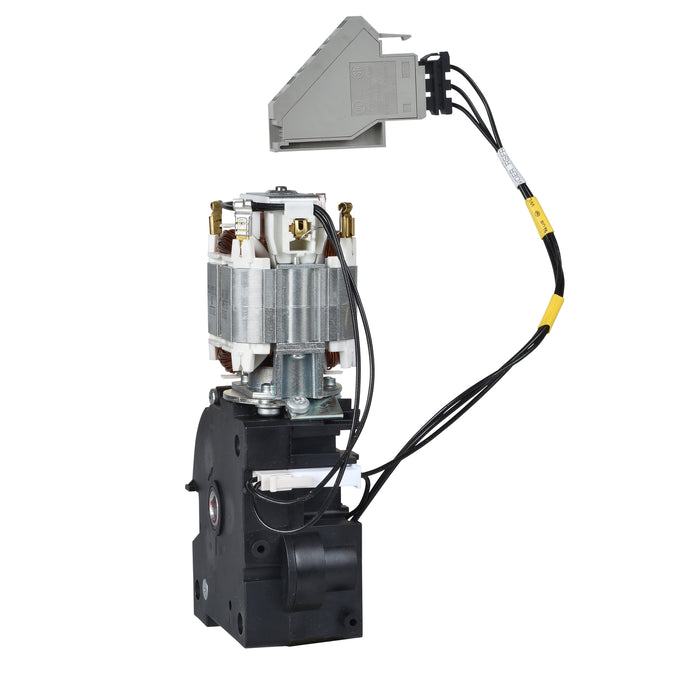

This is a motor mechanism (MCH) for fixed MasterPact NT circuit breakers. The motor mechanism module is used to remotely open and close the circuit breaker electrically. It is made up of a spring-charging motor equipped with an opening release and a closing voltage release. The spring-mechanism charging handle is used only as a backup if auxiliary power is absent. It is equipped with a 10A limit switch contact (CH) that signals the charged position of the mechanism. The operational control voltage is 200/240 VAC 50/60 Hz. The operating threshold is between 0.85xUn and 1.1xUn. The charging time is less than 3s. The maximum operating frequency should not exceed 3 cycles per minute.

For full spec sheet download please click here or contact our support team.
