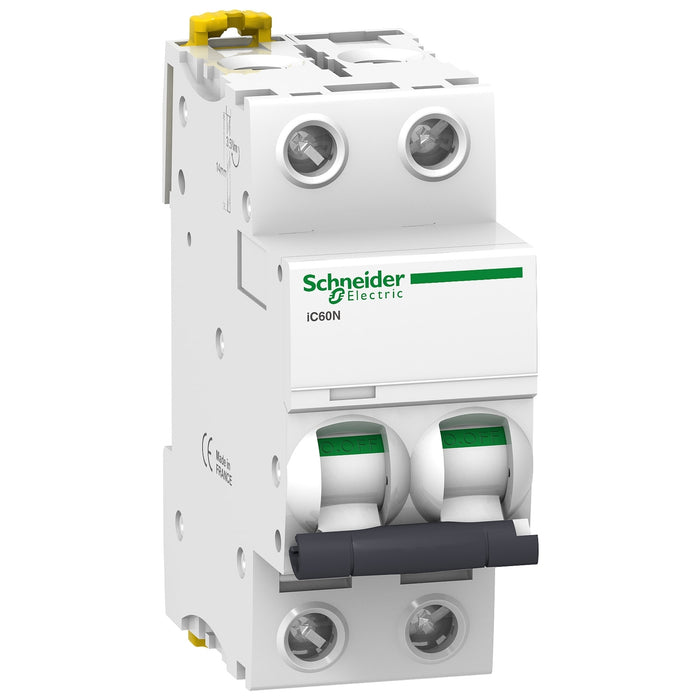

Schneider Acti9 iC60N Miniature Circuit Breaker, 2P 2 A, D-Curve, 6/50 kA

The Schneider Electric Acti9 iC60N miniature circuit breaker (A9N18302) is a 2-pole, 2 A device with D-curve tripping for high inrush currents. It offers dual-rated breaking capacity: 6 kA (IEC 60898-1) for residential/commercial use and 50 kA (IEC 60947-2) for industrial-grade short-circuit protection.

Key Specifications

• Range: Acti9 iC60N
• Product type: Miniature circuit breaker (MCB)
• Number of poles: 2P
• Rated current (In): 2 A
• Tripping characteristic: D-Curve (suited for high inrush loads like motors and transformers)
• Breaking capacity: 6 kA (IEC 60898-1) / 50 kA (IEC 60947-2)
• Standards: IEC 60898-1 and IEC 60947-2 compliant
• Mounting: DIN rail
• Acti9 features: VisiTrip fault indicator, VisiSafe isolation guarantee

Why Choose This Product?

• Heavy-duty protection: D-curve suitable for circuits with high inrush current.
• Dual compliance: Certified to both residential and industrial standards.
• Maximum safety: Acti9 VisiTrip/VisiSafe technology ensures quick fault detection and visible isolation.
• Flexible application: 2-pole configuration supports phase + neutral or 2-phase circuits.

Applications

Designed for circuits with high inrush loads such as motors, transformers, and capacitive banks, the iC60N 2P 2 A MCB provides reliable short-circuit protection across residential, commercial, and industrial installations.
