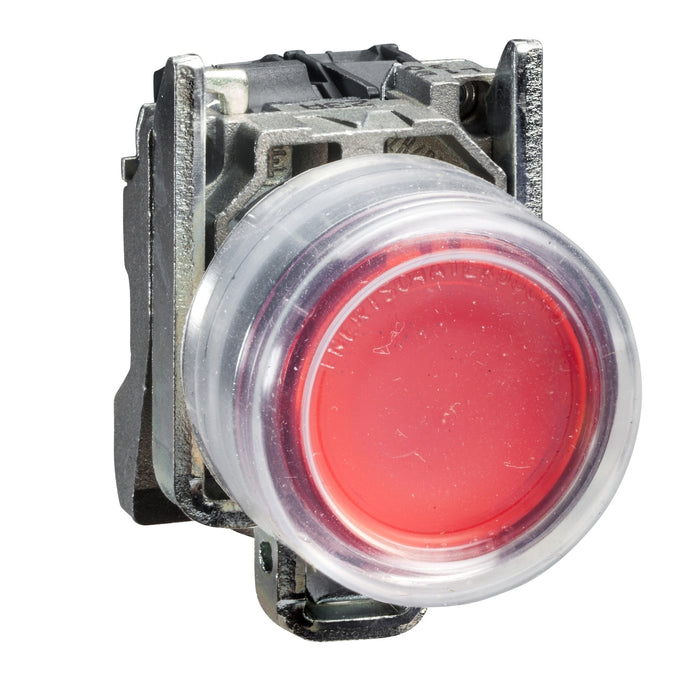

Harmony XB4 - ATEX D, Push button, metal, projecting, red, Ø22, spring return, booted, unmarked, 1 NC, ATEX

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This red pushbutton has a circular head shape with a booted, clear silicon flush push. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22. This pushbutton with booted clear silicon provides an ergonomic and visual interface for controlling machines. It comes with 1 NC contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Product Highlights

• Quick and easy assembly and disassembly
• Robustness to withstand harsh environments
• Various types of connection: screw clamp, connector, Faston connector or spring terminal
• Excellent mechanical connection with operator head
• A wide choice of contact blocks for general purposes or specific applications (low current, standard)

For full spec sheet download please click here or contact our support team.
