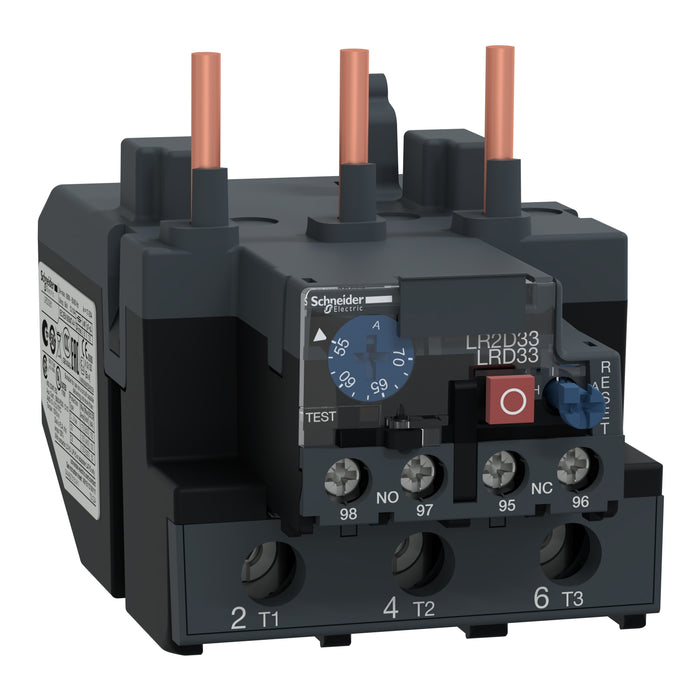

TeSys LRD thermal overload relays - 55...70 A - class 10A
TeSys LRD thermal overload relay, 70A/1000V, thermal setting range 55-70A, tripping class 10A, for protection of 3-phase motors 37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Product Highlights
- Ensure high safty with phase failure and load unbalance detection
- The thermal adjustement dial enables accurate and reliable operation
- It is designed with a transparent cover lockable by sealing in case of misoperation
- Simple mounting on DIN rail or screw fixing
- Green Premium product
For full spec sheet download please click here or contact our support team.
