TeSys LRD thermal overload relays - 110...140 A - class 10A

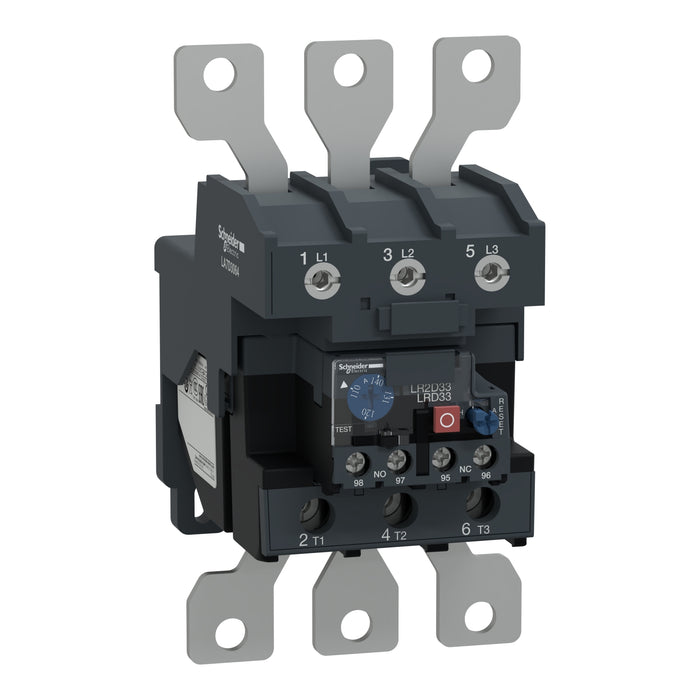

TeSys Deca LRD thermal overload relay, 140A/1000V, thermal setting range 110-140A, tripping class 10A, for protection of 3-phase motors. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp/ lugs-ring terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX), Green Premium compliant (RoHs/Reach).
Product Highlights
- Easy to separate or direct mounting of OLR with CTR, save installation and assembly of panel components
- Remote reset of relay without opening of panel doors
- With relay trip indicator to facilitate motor status monitoring
- Simple mounting on DIN rail or screw fixing
- Green Premium product
For full spec sheet download please click here or contact our support team.
