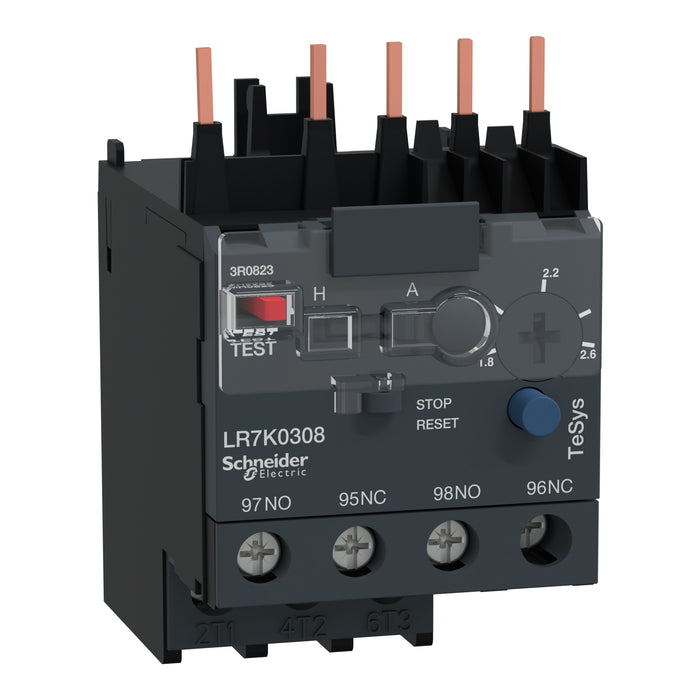

TeSys K - non differential thermal overload relays - 1.8...2.6 A - class 10A
TeSys LRK thermal overload relay, thermal setting range 1.8-2.6A, tripping class 10A, for protection of 3-phase motors. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of TeSys K contactors. Mounting on DIN rail or screw fixing, separated from the contactor, with using terminal block LA7K0064 (to be ordered separately).
Product Highlights
- Easy to separate or direct mounting of OLR with CTR, save installation and assembly of panel components
- selection of reset mode: Manual (marked H) or Automatic (marked A),
- with relay trip indicator to facilitate motor status monitoring
- Widely used for industry, infrastructure and building applications.
- Designed for simple control systems
For full spec sheet download please click here or contact our support team.
