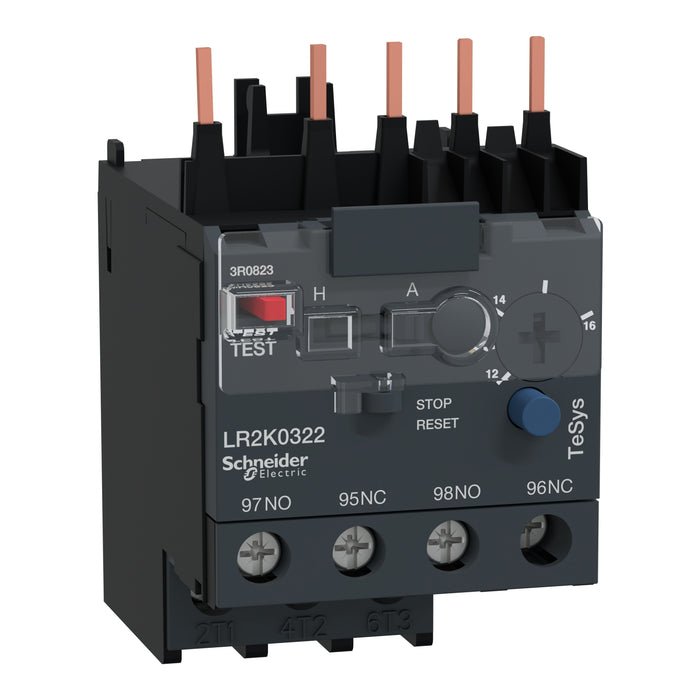

TeSys K - differential thermal overload relays - 12...16 A - class 10A

TeSys LRK thermal overload relay, 16A/690V, thermal setting range 12-16A, tripping class 10A, for protection of 3-phase motors 7.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test slide switch for simulation of a tripping, reset/stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1K16. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Product Highlights

• Meet all needs of motor protection with advanced features and functionalities
• Easy to set and read with a thermal adjustement dial
• Thermal overload relay built with compensated and phase failure sensitive
• Multiple resetting methods are provided for different usage situation
• Direct mounting under the contactor for specific versions

For full spec sheet download please click here or contact our support team.
