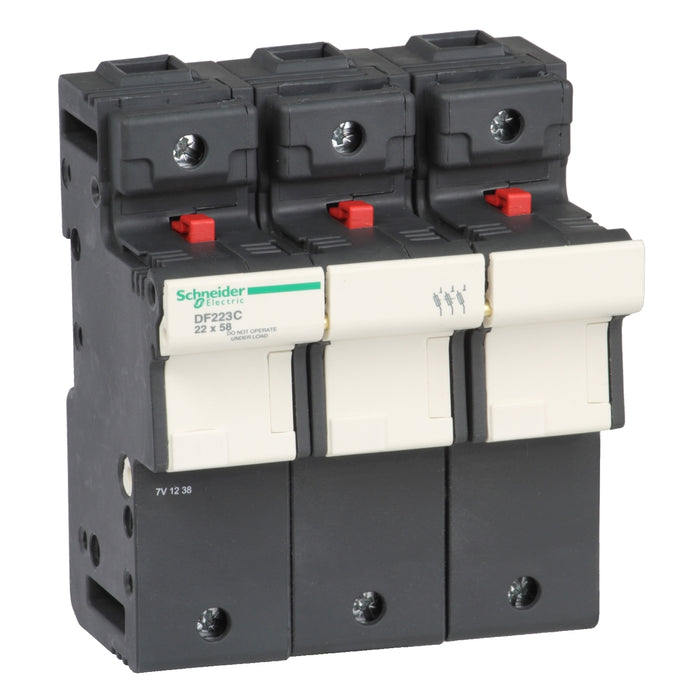

Fuse carrier TeSys DF, 3P 125A, fuse size 22x58 mm
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately). Compact (105mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).
Product Highlights
- To be used with 22x58mm fuse links up to 125A and short circuit current up to 120kA at 400V
- Dual positions locking system for easy DIN-rail mounting
- Prevent damage to your installation
- Reduce risk for equipment and personnel
- Improve production uptime
For full spec sheet download please click here or contact our support team.
