Profibus DP/Modbus communication gateway - 1 Profibus DP SUB-D9 - 1 RJ45 Modbus

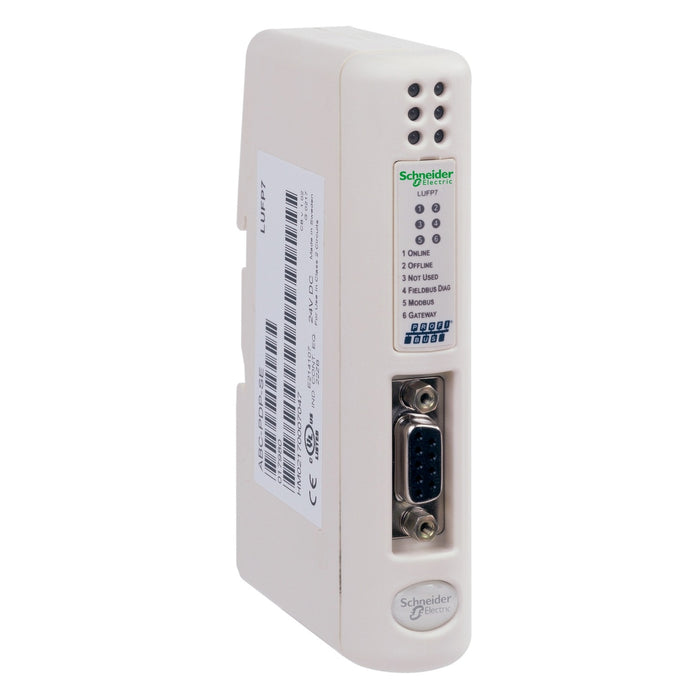

TeSys U communication gateway for interfacing groups of up to 8 x TeSys U starter controllers connected on the same Modbus serial link to a Profibus DP field bus. On front side, it provides the Profibus DP connector, and device and communication LED status. It provides on the bottom 2 x RJ45 connectors for Modbus serial link and PC link, a connector for a 24V DC external power supply. It can be used for interfacing ATS48 soft starters and ATV31 variable speed drives to Profibus DP. To be clipped on a 35mm DIN rail. Green Premium compliant (RoHS/REACh).
Product Highlights
- The LUFP7 gateway behaves both as a Profibus-DP slave on the upstream network
- Modbus RTU master on the downstream network.
- Detachable power connector for the gateway ( 24V ±10%).
- Female RJ45 connector to a PC running ABC-LUFP Config Tool configuration software.
- Female RJ45 connector for the downstream Modbus RTU network.
For full spec sheet download please click here or contact our support team.
