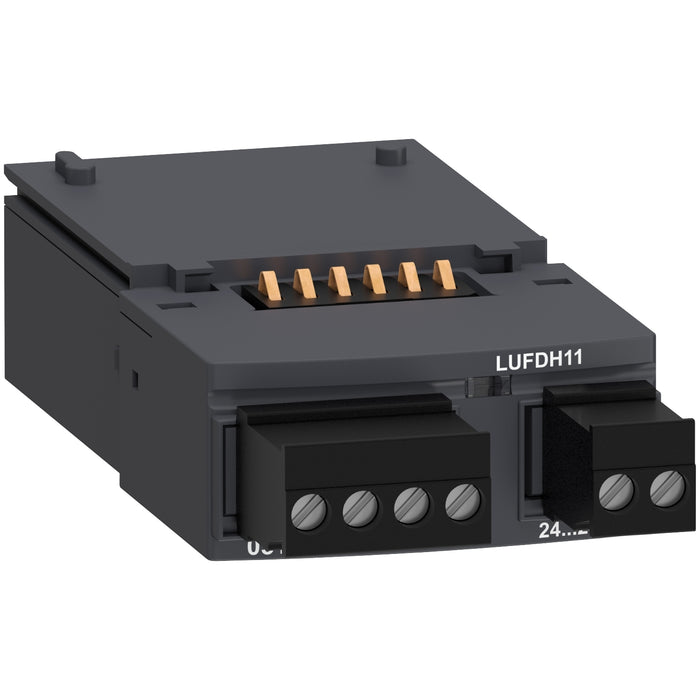

function module - thermal overload signalling - 1 NO + 1 NC - forTeSys U
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload tripping indication. It indicates the overload tripping and the reset done by the power base control pad or done remotely. It provides 1NO + 1NC instantaneous contact rated 24-250V AC/DC 5A max. It requires an external power supply 24-240V AC or DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Product Highlights
- Indicates the overload tripping and reset done by power base control pad or done remotely
- requires an external power supply
- Modular, plug & play structure helps you to perform quick maintenance
- Direct access to detailed information for every motor starter of your installation
- Advanced motor management system
For full spec sheet download please click here or contact our support team.
