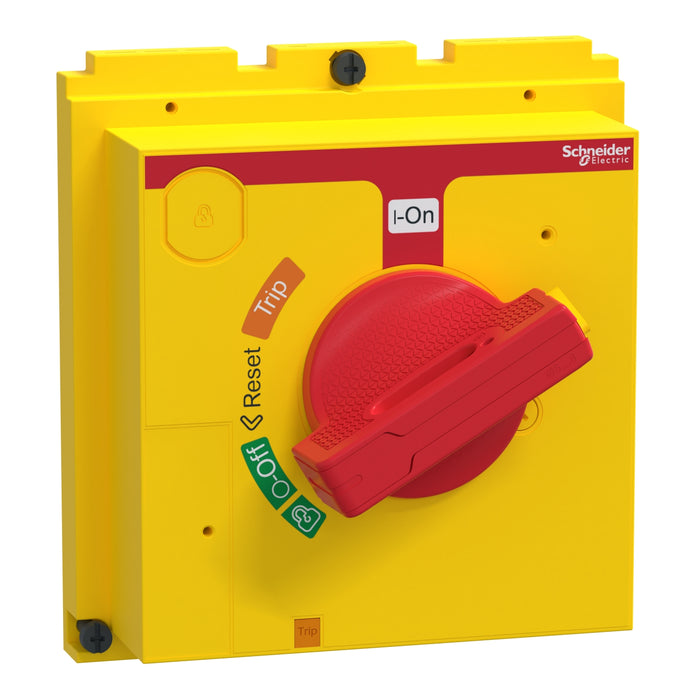

direct rotary handle, ComPacT NSX 400/630, red handle on yellow front, IP40

It is a direct rotary handle for ComPacT NSX 400/630 and PowerPact Multistandard L frames devices. It is suitable for isolation and it is used for machine tool control. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a red handle on yellow front. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Product Highlights

• Schneider Electric green signature style for the entire ComPacT range
• Estimated 40% reduction of wiring time for panel builders
• Experience easier installation thanks to a new ergonomic front-plate design
• Gain the confidence that all auxiliaries are on the right spot
• Ergonomic new toggle for easier breaker manual operation

For full spec sheet download please click here or contact our support team.
