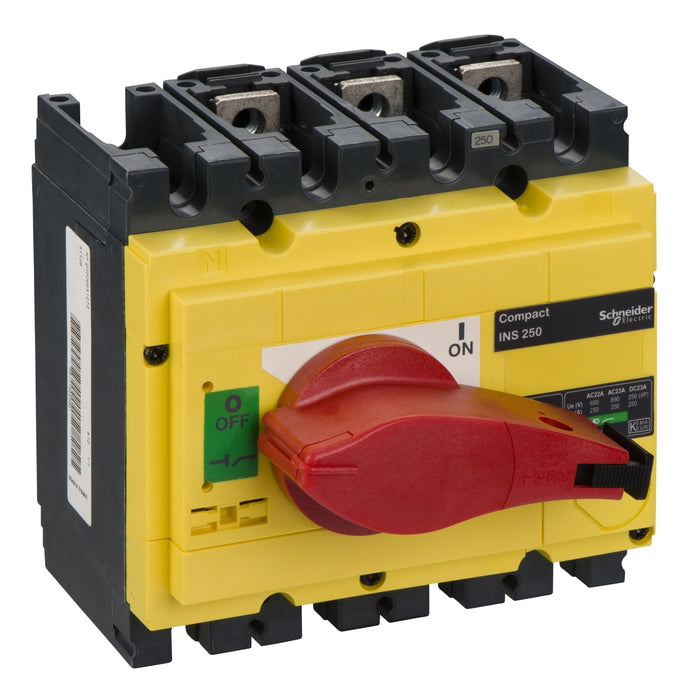

switch disconnector, Compact INS250 , 250 A, with red rotary handle and yellow front, 3 poles

This Compact INS250 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 250A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS250 is a class II insulation level front-face device as per IEC 60664 standard.

Product Highlights

• Schneider Electric green signature style for the entire ComPacT range
• Estimated 40% reduction of wiring time for panel builders
• Experience easier installation thanks to a new ergonomic front-plate design
• Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
• Ergonomic new toggle for easier breaker manual operation
