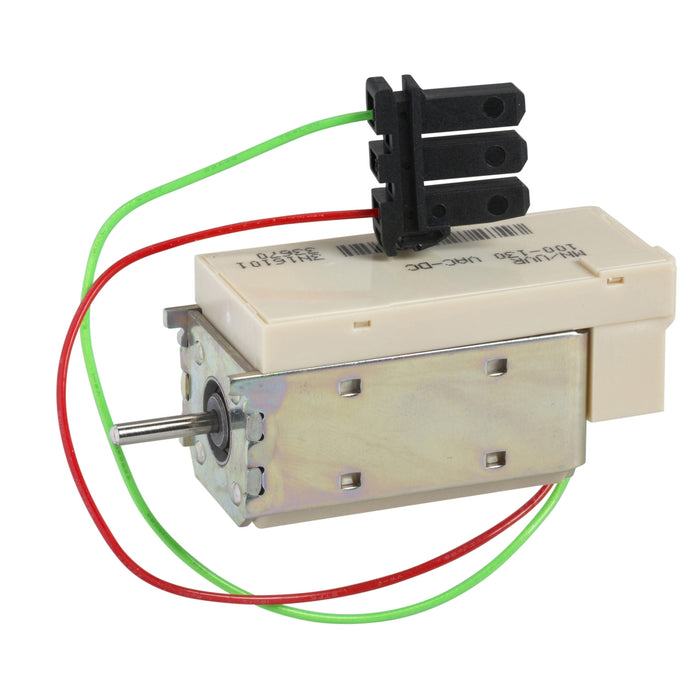

MN undervoltage release, ComPact NS630b to NS3200 fixed, MasterPact NT/NW, rated voltage 48/60 VDC, 48 VAC 50/60 Hz
This is a MN undervoltage release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage is 48VDC to 60VDC or 48VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary.
Product Highlights
- ComPacT NS is a range of circuit breakers for built-in power & energy metering
- The solution covers ratings from 630 A to 3200 A
- MicroLogic electronic control unit provides electrical measurement and analysis functions
- ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
- Flexible installation, in any position, in a switchboard or wall-mounted
For full spec sheet download please click here or contact our support team.
