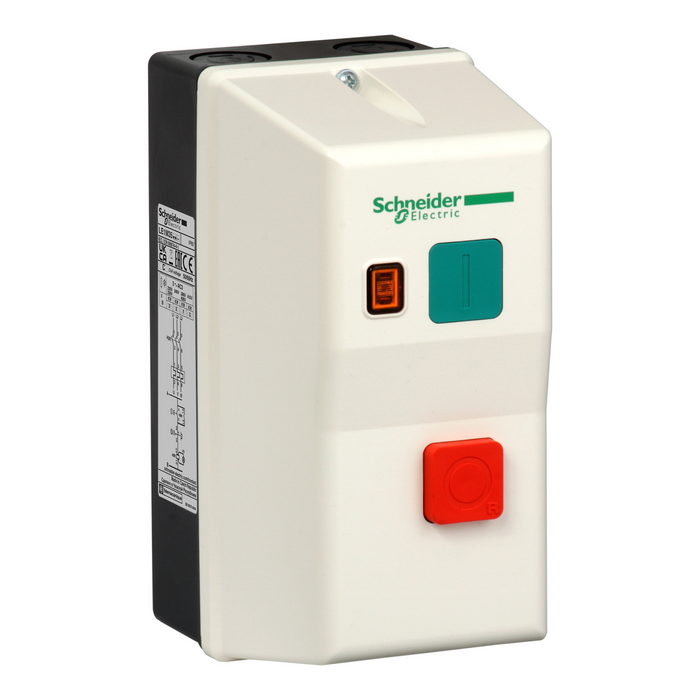

TeSys LE - enclosed DOL starter - 3.7...5.5 A - 220 V AC coil

TeSys Control enclosed starter with contactor and thermal overload relay, 3 poles, for non-reversing motor control applications up to 2.2kW@400V AC-3. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. Self-extinguishing ABS material enclosure, IP65 protection. It includes a thermal overload relay LR2K and contactor LC1K with a control circuit 220V 50/60Hz, to be wired by the customer. Equipped with a green pushbutton Start (I), a red pushbutton Stop/Reset (O), and a yellow operating indicator. To be combined with an external short circuit protection component, to reach a type 1 or type 2 coordination. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Product Highlights

• Polycarbonate enclosure provides high level protection against water, dust and mechanical compact
• Environmentally friendly product
• Good performance on motor protection against overload, work with overload relay
• Easy to use with pushbuttons at the front
• Multiple resetting methods: manual & remotely

For full spec sheet download please click here or contact our support team.
