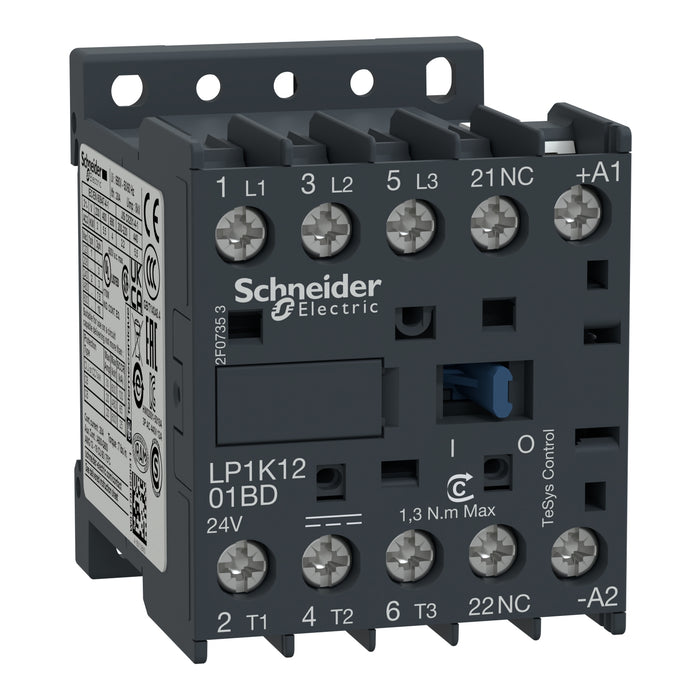

TeSys K contactor - 3P - AC-3 <= 440 V 12 A - 1 NC aux. - 24 V DC coil

TeSys K contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 24V DC coil, 1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Product Highlights

• TeSys K is a compact contactor range with a wide variety of coil voltage and terminal connection options
• The offer features specific versions for railway (TeSys S207) and electrodomestic (TeSys S335) applications.
• One of the smallest contactor offerings in the market.
• The range delivers strong performance for its compact size and promises seamless integration in all applications.
• Widely used for industry, infrastructure and building applications.

For full spec sheet download please click here or contact our support team.
