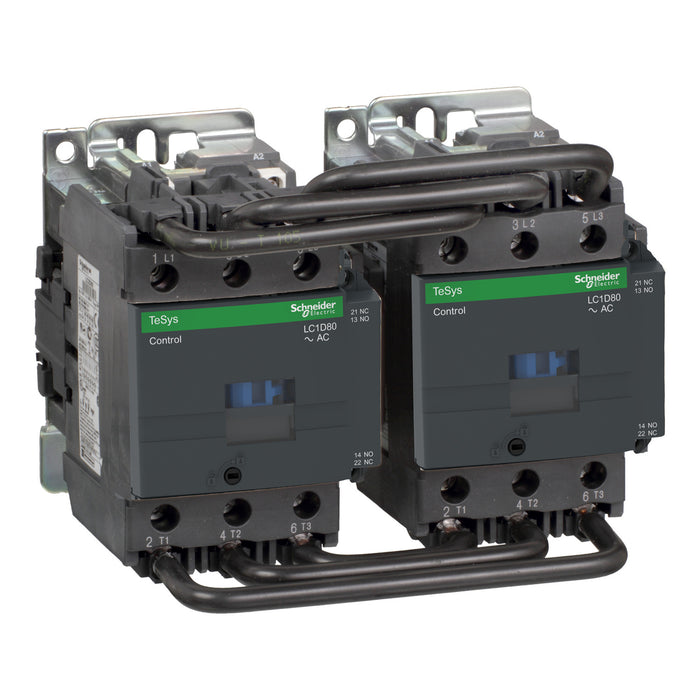

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 230 V AC coil
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides 230V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (182mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Product Highlights
- Safety application with electrical interlocking between the 2 contactors
- It brings a significant reduction of energy consumption and less heat dissipation in cabinet
- Simple and quick maintenance with compact size
- Green Premium product
- Multi sdandards certified makes it possible to wide application
For full spec sheet download please click here or contact our support team.
