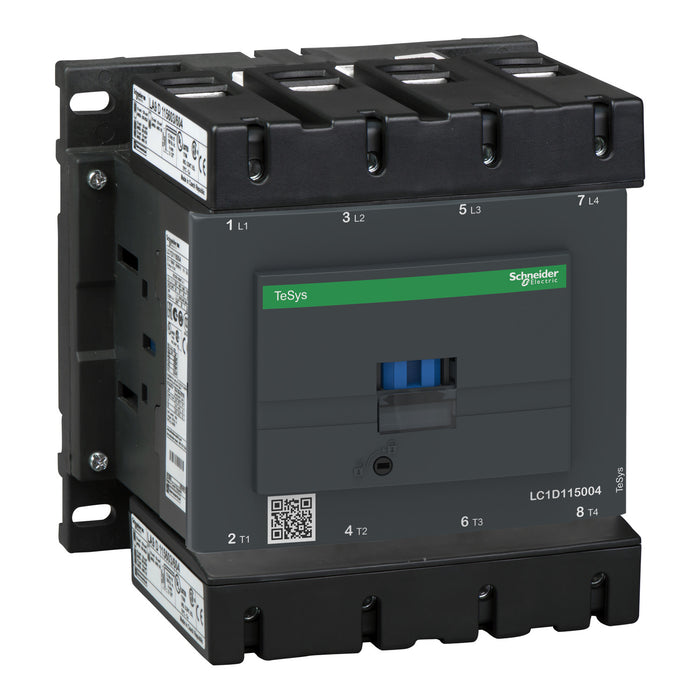

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 200 A - 220 V AC 50 Hz coil
TeSys Deca contactor, 4 poles(4NO) for category AC-1 applications up to 200A @440V. It provides with 220V 50 Hz coil, with no auxiliary contacts, power and control connections by lugs and bars. It procures high reliability and durability with 8 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 1200 cycles per hour under maximum 60°C. The dimension is 158mm x 150mm x 132mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,DNV,GL,CSA,GOST,BV,UL,LROS,RINA,UKCA) and Green Premium compliant (RoHs/Reach).
Product Highlights
- Designed to meet needs of demanding applications
- Wide range of accessaries to satisfy different customer usage
- Digital customer experience for technical documents
- New modern look & feel of all machines
- Easier to install and operate with multi-standard screws
For full spec sheet download please click here or contact our support team.
