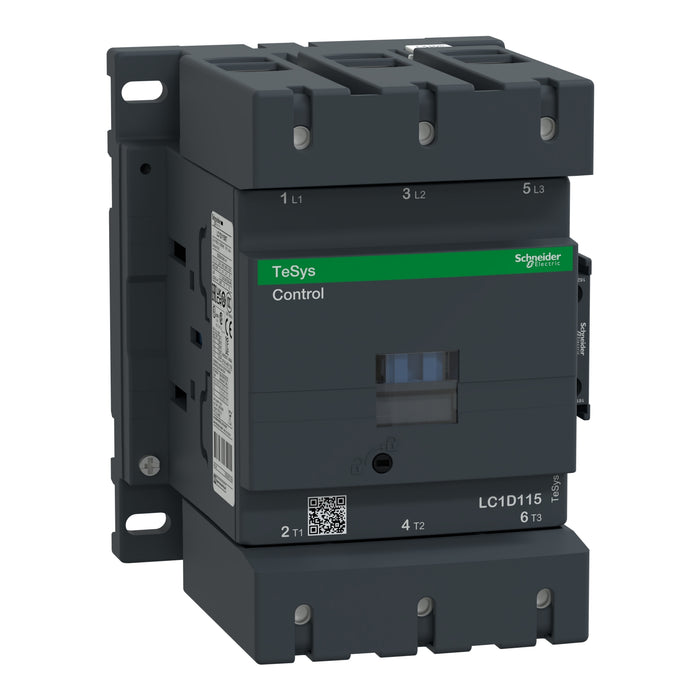

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 380 V AC 50/60 Hz coil
TeSys Deca contactor, 3 poles(3NO) for category AC-3 applications up to 115A @440V. It provides with 380V 50/60 Hz coil, with 1NO+1NC auxiliary contacts, power and control connections by screw clamp terminals. It procures high reliability and durability with 8 Mcycles mechanical durability and 0.95 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 1200 cycles per hour under maximum 60°C. The dimension is 158mm x 120mm x 136mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,DNV,GL,CSA,GOST,BV,UL,LROS,RINA,UKCA) and Green Premium compliant (RoHs/Reach).
Product Highlights
- Designed to meet needs of demanding applications
- Wide range of accessaries to satisfy different customer usage
- Digital customer experience for technical documents
- New modern look & feel of all machines
- Easier to install and operate with multi-standard screws
For full spec sheet download please click here or contact our support team.
