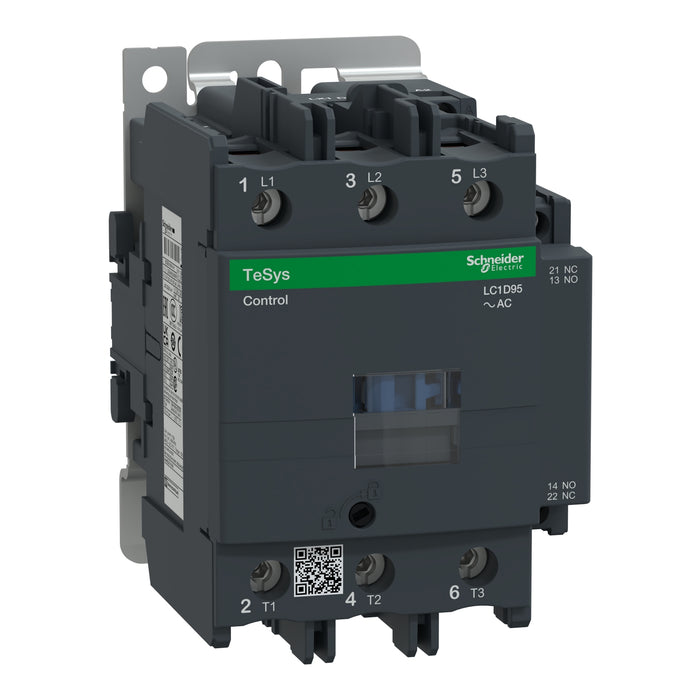

LC1D95P7, TeSys D contactor, 3P(3 NO), AC-3, <= 440 V 95 A, 230 VAC 50/60 Hz coil
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 95A/1000V AC-3/AC-3e (45kW@400V). It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts, power connections by screw terminals and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Product Highlights
- Long durability with high operating rate
- Reliable performance under high environment
- Green Premium product
- Multi sdandards certified makes it possible to wide application
- Easy installation and maintenance with compact design
For full spec sheet download please click here or contact our support team.
