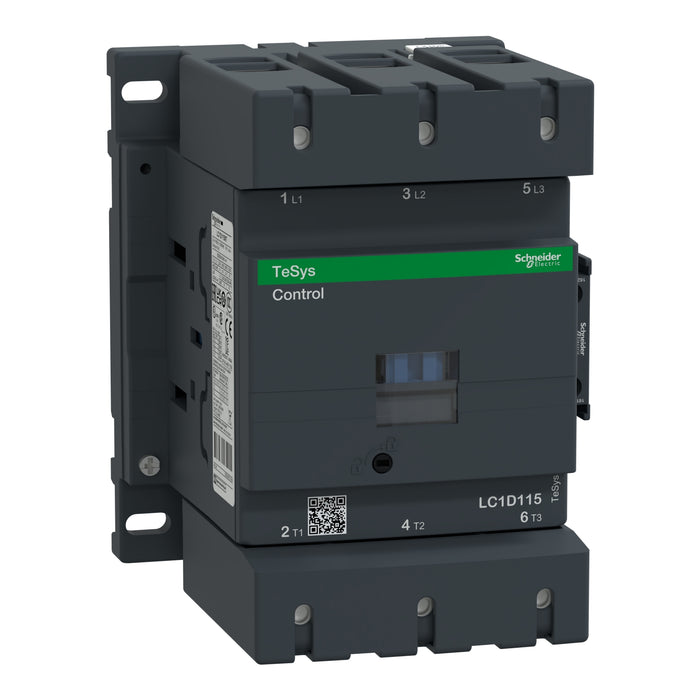

LC1D115F7, TeSys D contactor, 3P(3 NO), AC-3, <= 440 V 115 A, 110 VAC 50/60 Hz coil
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 110V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Product Highlights
- Long durability with high operating rate
- Reliable performance under high environment
- Green Premium product
- Multi sdandards certified makes it possible to wide application
- Easy installation and maintenance with compact design
For full spec sheet download please click here or contact our support team.
