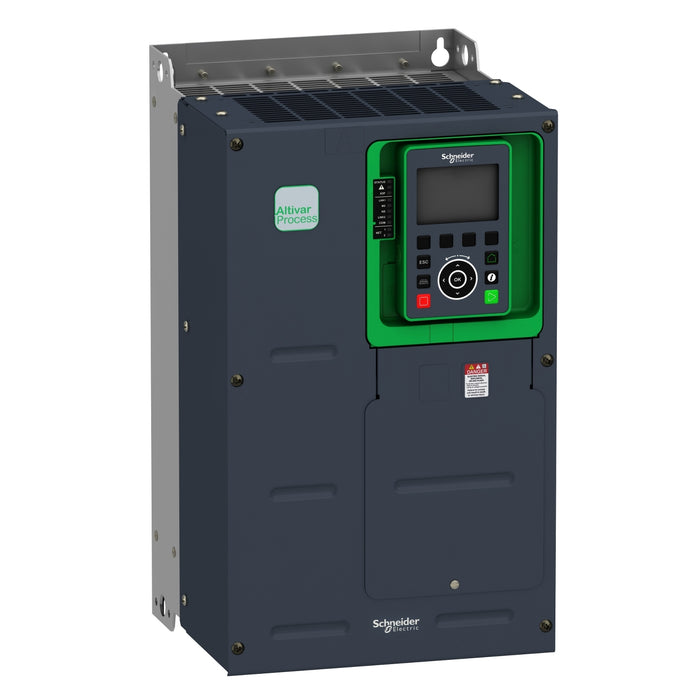

Variable speed drive, Altivar Process ATV600, ATV630, 11kW/15 hp, 500V/690 V, IP00

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features three built-in RJ45 communication ports as standard, 1 Ethernet port, and two serial ports. It works at a rated supply voltage from 500V to 690V AC. This drive saves up to 30% energy when on standby due to the innovative ‘‘Stop and Go " operation without additional costs. It is suitable for motors with a power rating of up to 11kW / 15hp for applications requiring slight overload (up to 120%). It is suitable for motors with a power rating of up to 7.5kW / 10hp for applications requiring significant overload (up to 150%). It weighs 22kg, and its dimensions are 246mm wide, 420mm high, and 242mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Product Highlights

• Embedded power measurement and energy dashboard
• Embedded process monitoring and control
• Energy saving
• Asset monitoring and protection
• Drift monitoring

For full spec sheet download please click here or contact our support team.
