TeSys GV4 - extended rotary handle black - IP54

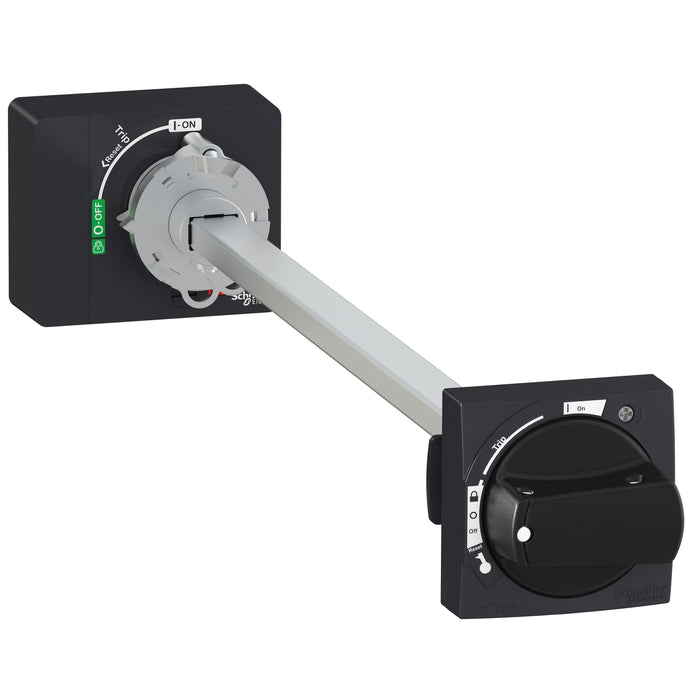

TeSys GV extended rotary handle, for motor circuit breakers GV4 mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 214-627mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).

Product Highlights

• New modern look & feel of all machines
• Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
• Easier to install and operate with multi-standard screws
• Safe and long-lasting power connection with EverLink terminals
• Digital customer experience for technical documents

For full spec sheet download please click here or contact our support team.
