rectangular sensor for earth leakage protection, MasterPact NT, ComPact NS630b to NS1600, 1600A, inside dimensions 280mm x 115mm

rectangular sensor for earth leakage protection, MasterPact NT, ComPact NS630b to NS1600, 1600A, inside dimensions 280mm x 115mm

by Schneider Electric
SKU 33573
Availability:
9 in stock, ready to be shipped
R 30,952.82 - R 30,952.82
R 30,952.82
R 30,952.82 - R 30,952.82
R 30,952.82

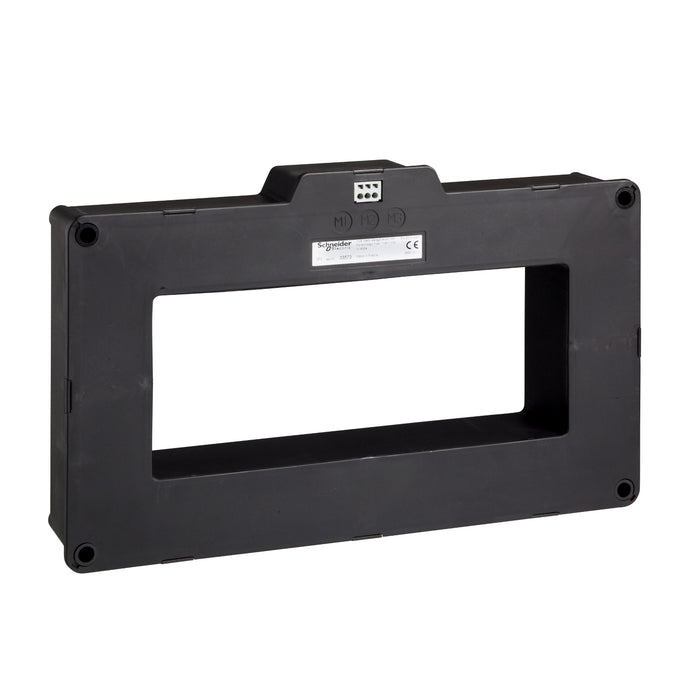

This is a rectangular sensor for earth leakage protection for Compact NS 630b to 1600 devices equipped with Micrologic 7 A/P trip unit. The sensor is installed around the busbars (phases + neutral) to detect the zero phase sequence current required for the earth-leakage protection. The operational current is up to 1600 A. The inside dimensions are 280mm (W) x 115mm (H) x 71mm (D). The external dimensions are 381mm (W) x 233mm (H) x 71mm (D). The weight is 14 Kg. The sensor is installed in the switchboard. The sensor is provided with a cable for the connection to Compact NS circuit breaker.

Product Highlights

  • MasterPact NT and ComPacT NS are ranges of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 630 A to 6300 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • MasterPact NT and ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation in a switchboard or wall-mounted

For full spec sheet download please click here or contact our support team.
