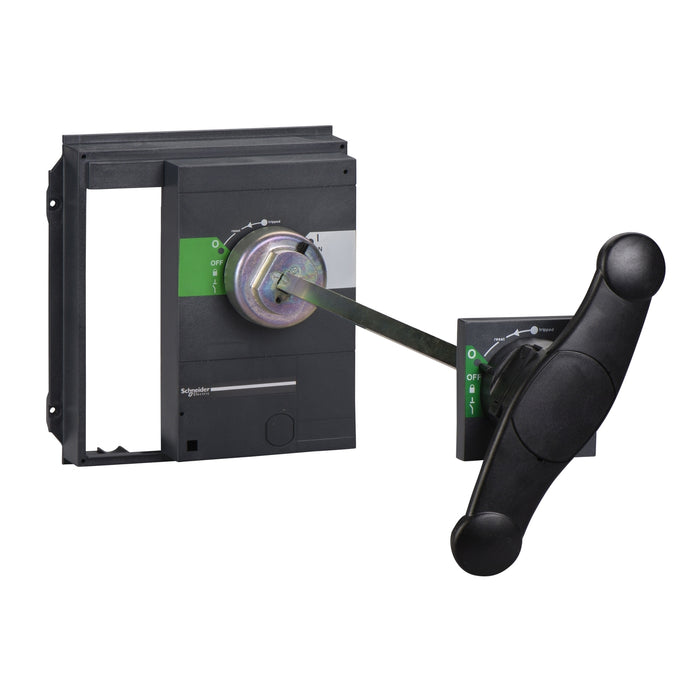

extended rotary handle, ComPact NS630b to NS1600 fixed, black handle, shaft length 218 to 605 mm, IP55

It is an extended black rotary handle for Compact NS630b to 1600 devices. It is suitable for isolation and it is used for standard applications. This rotary handle is a front control accessory. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The degrees of protection are IP55 and IK08. It may be locked in the OFF position by one to three padlocks, hasp diameter 5 to 8 mm (not supplied).

Product Highlights

• ComPacT NS is a range of circuit breakers for built-in power & energy metering
• The solution covers ratings from 630 A to 3200 A
• MicroLogic electronic control unit provides electrical measurement and analysis functions
• ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
• Flexible installation, in any position, in a switchboard or wall-mounted

For full spec sheet download please click here or contact our support team.
