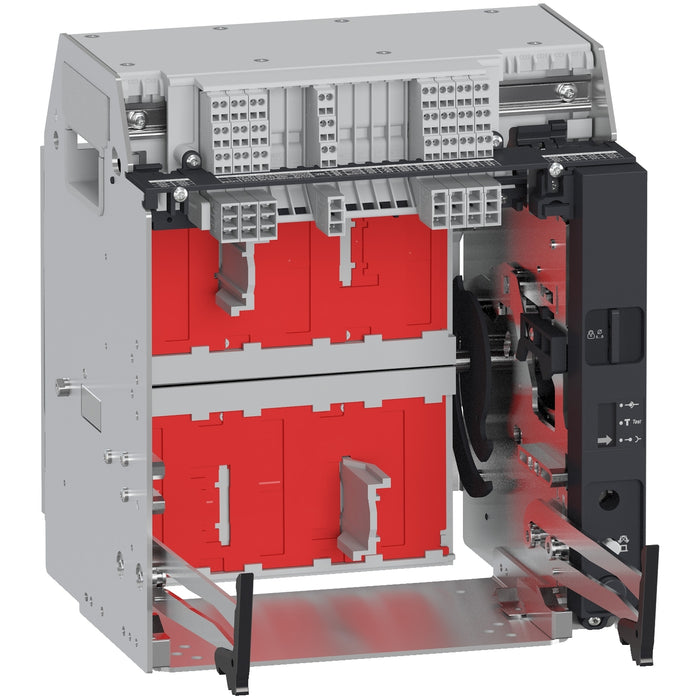

Chassis for Masterpact MTZ1 16 H1/H2/H3 - 06/10 L1 - 1600 A - 3P

This device is a chassis for drawout (withdrawable) MasterPact MTZ1 circuit breaker or switch disconnector in 3 poles version. The rated current of this chassis is 1600A, for circuit breakers with H1/H2/H3 performance level. The rated current is from 630A up to 1000A, for circuit breakers with L1 performance level. The rated current is 1600A, for HA switch disconnectors. The drawout version brings some benefits compared to fixed version with visible separation of the power contacts via racking out. It offers also an easy and complete access to the device for periodic maintenance, and the possibility of a quick replacement of the device if necessary. MasterPact MTZ is the last generation of high current air circuit breakers and switch disconnectors embedding advanced digital technologies. MasterPact MTZ is compliant with international standards IEC 60947-1 and IEC 60947-2. MasterPact MTZ devices are part of panel solution made possible by Schneider Electric’s EcoStruxure Power architecture.
