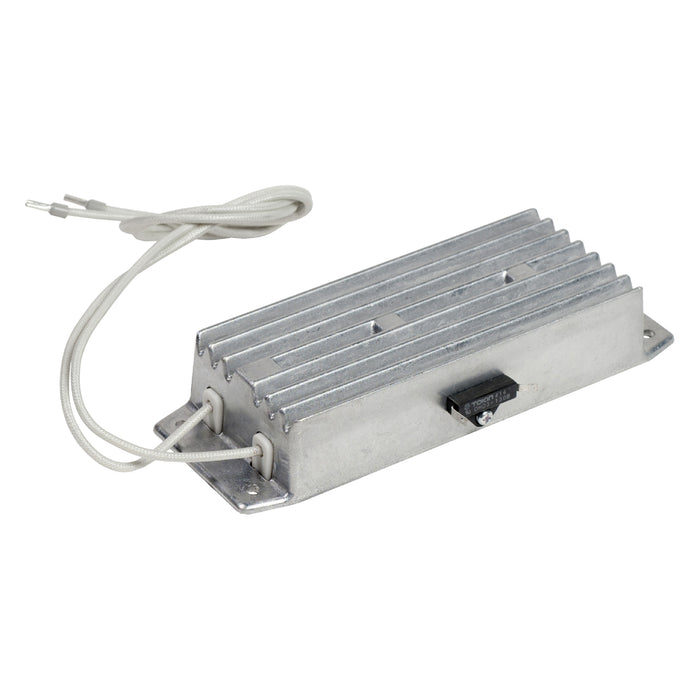

braking resistor - IP 00 - 100 Ohm - 28 W

braking resistor - IP 00 - 100 Ohm - 28 W

by Schneider Electric
SKU VW3A7723
Availability:
Available for backorder
Available for backorder
R 9,886.19 - R 9,886.19
R 9,886.19
R 9,886.19 - R 9,886.19
R 9,886.19

This braking resistoris an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP00. It is compatible with Altivar 12, Altivar 312, Altivar 312 solar, easy Altivar 310 and easy Altivar 310L ranges. It is compatible with Altivar 312, Altivar 320 and Altivar easy 310. the power available is 28W at 50°c and 32W at 40°c. It weighs 0.605kg and its dimensions are, 60mm wide, 170mm high, 30mm deep.

Product Highlights

  • For variable speed drives
  • Allow your drive to operate while braking to a standstill or during slowdown braking
  • Dissipates the braking energy
  • Enables maximum transient braking torque

For full spec sheet download please click here or contact our support team.
