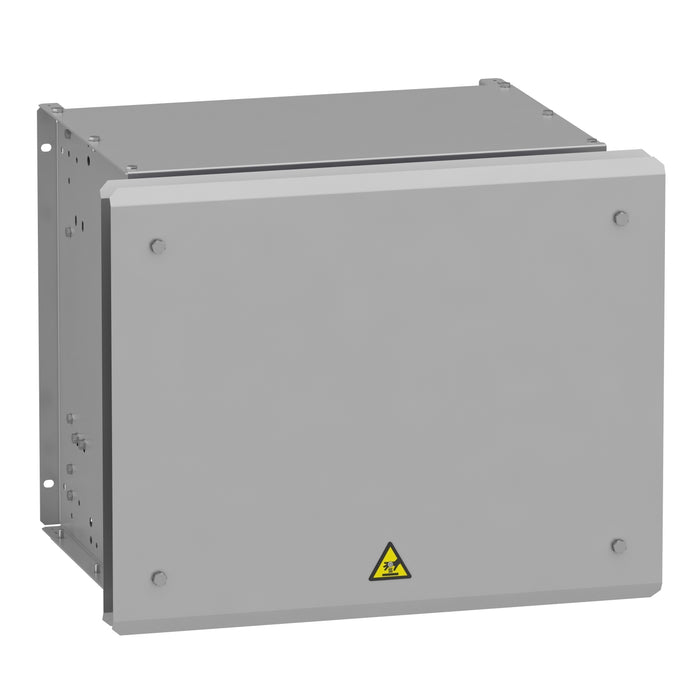

braking resistor - 28 ohms - 5.1 kW - IP23
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 28Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 25kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Product Highlights
- Enable maximum transient braking torque
- Designed for machines with high inertia, driving loads, and machines with fast cycles
- Thermal protection via temperature-controlled switch or thermal overload relay
- Terminal electrical connection
- IP23 degree of protection
For full spec sheet download please click here or contact our support team.
