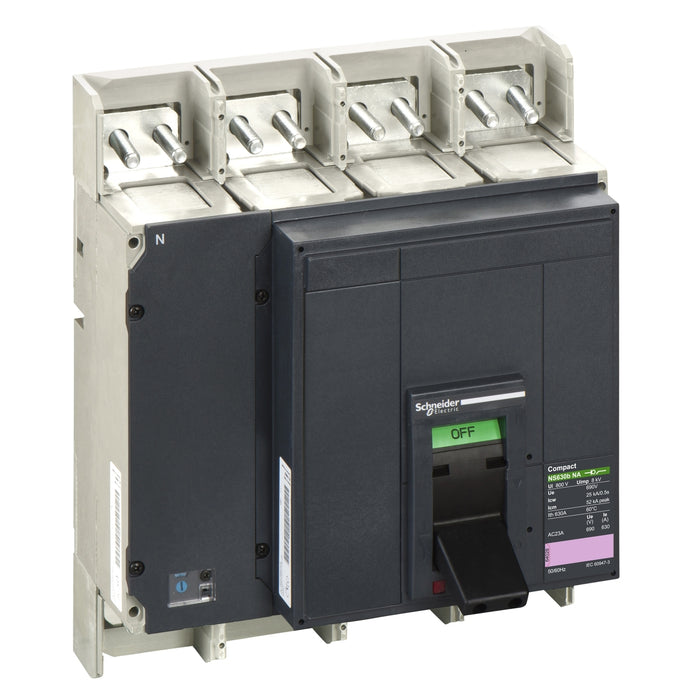

basic switch disconnector, Compact NS800 NA, fixed, electrically operated, 800 A, 690 VAC 50/60 Hz, 4 poles

basic switch disconnector, Compact NS800 NA, fixed, electrically operated, 800 A, 690 VAC 50/60 Hz, 4 poles

by Schneider Electric
SKU 33443
Availability:
Available for backorder
Available for backorder
R 39,881.02 - R 39,881.02
R 39,881.02
R 39,881.02 - R 39,881.02
R 39,881.02

This Compact NS800NA is a 4 poles switch disconnector. It is used to control and isolate electrical distribution circuits. This device is a fixed version and is electrically operated by a motor mechanism. The operational current is 800A (AC23A) and the operational voltage is 690V 50/60Hz. This basic version does not include the front and rear power connections. The dimensions are 327mm (width), 280mm (height) and 147mm (depth). This device complies with IEC 60947-3 standard.

For full spec sheet download please click here or contact our support team.
