BACnet MS/TP communication module - Altivar Process ATV600

BACnet MS/TP communication module - Altivar Process ATV600

by Schneider Electric
SKU VW3A3725
Availability:
Available for backorder
Available for backorder
R 6,258.52 - R 6,258.52
R 6,258.52
R 6,258.52 - R 6,258.52
R 6,258.52

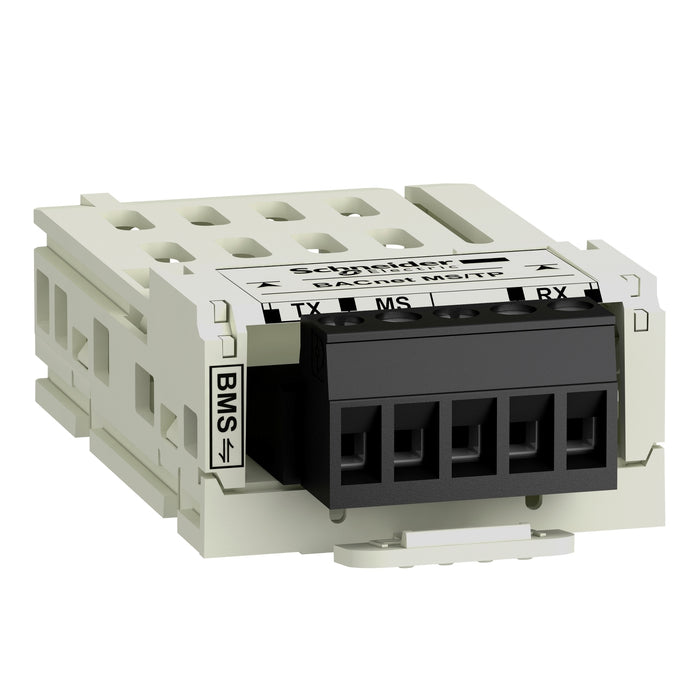

This BACnet MS/TP communication module is an option for variable speed drives of the Altivar range. It is equipped with an RS485 5-pin removable terminal block. It is compatible with Altivar Process drives. This module allows AV, BV, MSV BACnet MS/TP, and COV notification communication services. The transmission rate is up to 76.8kbit/s. It has 4 LEDs: one showing error, one transmission activity, one reception activity (RX), and one module status. It weighs 0.035kg. It enables integration of your variable speed drive in your process control network. Its protection index is IP20, and it conforms to BTL, CSA, IEC 61000 (4-2, 4-3, 4-4, 4-5, 4-6, 6-1, and 6-3), IEC 60730-1, UL508, and UL 873 standards.

Product Highlights

  • Bring your drive into the BACnet network
  • IP20
  • Easy to install
  • Designed for Altivar variable speed drives

For full spec sheet download please click here or contact our support team.
