PUSH BUTTON 600VAC 10A 30MM T-K

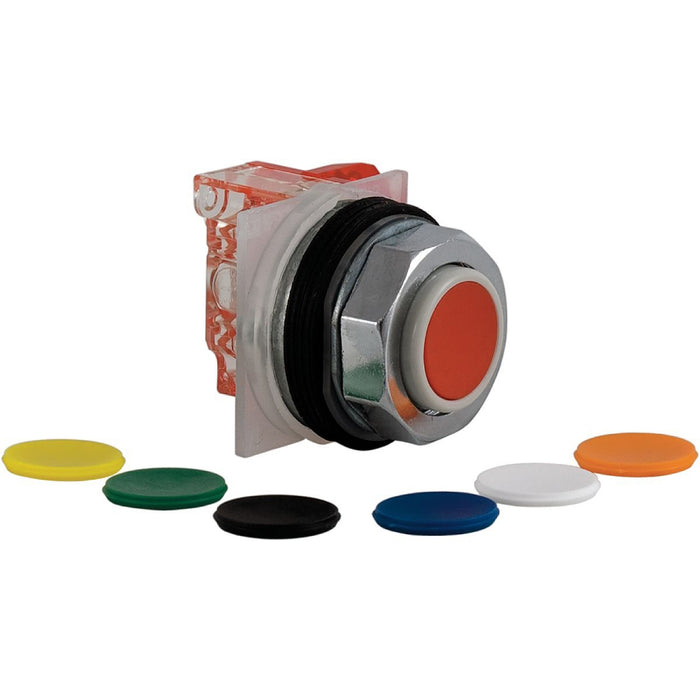

This Harmony 9001K, modular projecting pushbutton with 7 color caps, operates with a spring return mechanism. It has a chromium-plated metal bezel, 1 CO contact, and is supplied with a metal extended guard. This projecting pushbutton provides an ergonomic interface for controlling various types of machines. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66 rating, making it ideal for operation in harsh environments. It complies with UL 508 and NEMA certifications, as well as the standards of IEC 60947-1, JIS C 4520, IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, IEC 60947-5-4. The Harmony 9001K control and signaling units offer good robustness with a chromium-plated metal bezel.

Product Highlights

• Simple modular design facilitates post-installation servicing, modification, and adaption of machines
• Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery
• Metal bezel, ideal for severe environments, especially applications requiring high impact and vibration resistance
• International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)

For full spec sheet download please click here or contact our support team.
