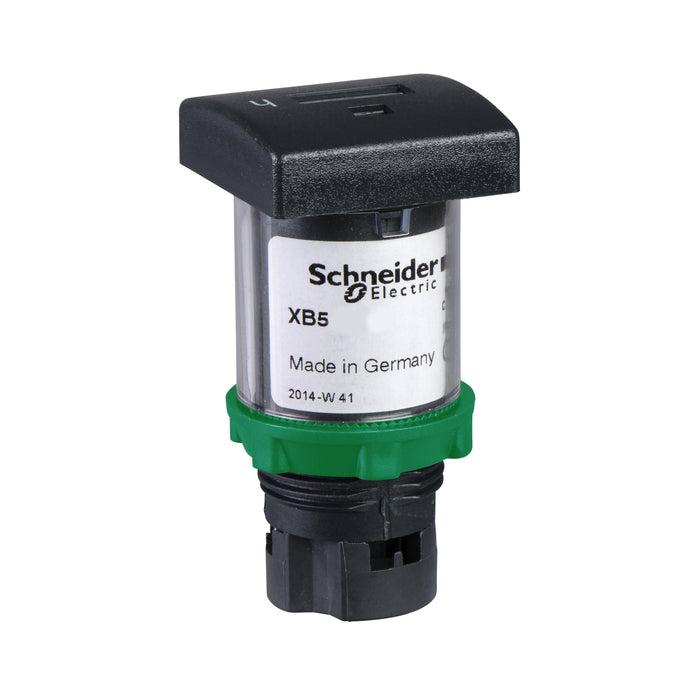

Harmony XB5, Hour counter, plastic, Ø22, mechanical 5 digit display, 230..240 V AC

This hour counter is part of Harmony XB5 range of 22mm plastic control and signaling units. It provides mechanical 5 digit display. It is supplied with 230V to 240V AC. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 22mm diameter panel cut-out. It weighs 45g and its dimensions are, 30mm wide, 30mm high, 60mm deep. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications It is CE and UL certified. This range delivers an innovative and ergonomic design that allows easy operation and improves the look and feel of your control panels and machines.

Product Highlights

• Quick and easy assembly and disassembly
• Robustness to withstand harsh environments
• With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
• A wide choice of contact blocks for general purposes or specific applications (low current, standard)
• Excellent mechanical connection with operator head

For full spec sheet download please click here or contact our support team.
