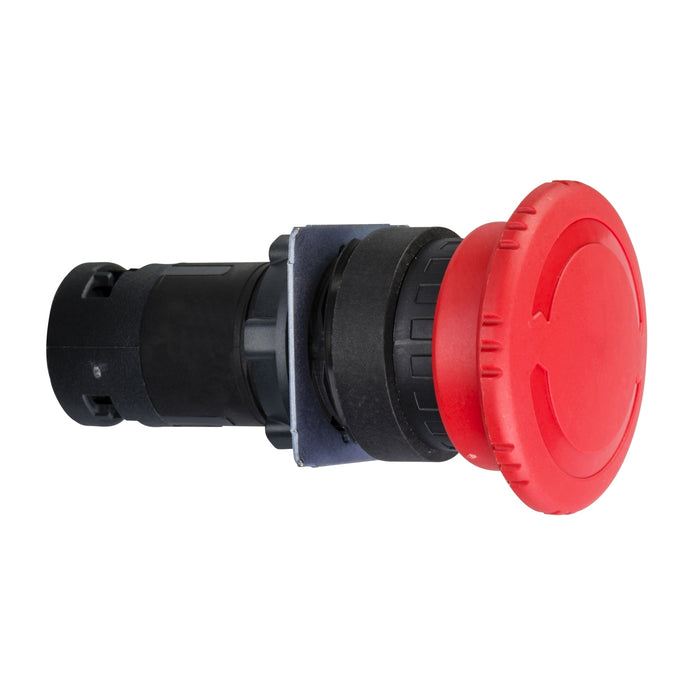

Emergency switching off monolithic push button, Harmony XB7, Ø22 mm, red mushroom head Ø 40 mm, turn to release 1 NC

This Harmony XB7 emergency stop mushroom head push button is part of the range diameter 22mm plastic, Harmony XB7 monolithic. It has a a circular head shape, and is supplied with a turn to release red mushroom, diameter 40mm, unmarked. It features 1 NC slow break contact and screw-clamp terminals connection type. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is easily installed into a standard 22mm diameter panel cut-out. It weighs 32g. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is sold in lot of 10.

Product Highlights

• Finger safe screw clamp terminals
• Class II conforming to IEC 60536
• Complies with IEC;UL and CSA standards
• CE approved
• Wide range of operating temperature from -25°C to 70°C

For full spec sheet download please click here or contact our support team.
